Technical Specification

Hydraulic backhoe with transeatable frame and mechnical block, hydraulic and indipendent stablize feet, main joints with pins and bushes in hardened and rectified steel, linkage kit for skid-steer loader and backhoe loader.

Digging depth (mm) 2600
Weight (Kg.) 600
Frame largeness (mm) 1400
Swing each side 90°
Oil flow (LPM) 80
Pressure (Bar) 175
Bucket Breakout Force (KN) 23

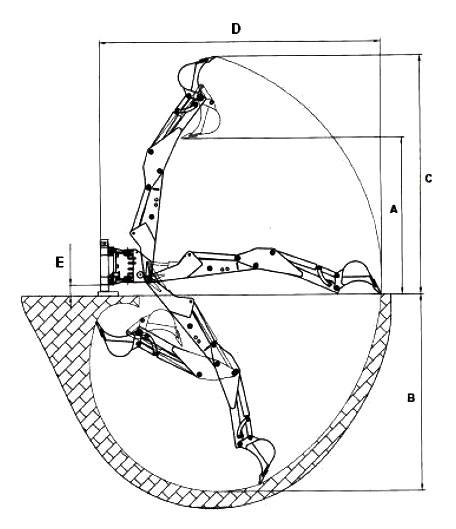

A (mm) 1950
B (mm) 2600
C (mm) 2965
D (mm) 3545
E (mm) 200

Bucket Size Available 300 mm, 450 mm and 600 mm
for Backhoe Application/Ditch cleaning/ excavation.

Note:- All dimensions are variable within ± 1.5%. VERT reserves the right to change specifications without prior notice.
