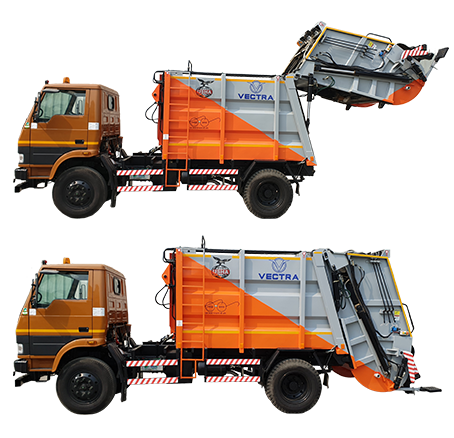

BINGO Refuse Compector

The body of garbage compactor can be placed on chassis of any Indian truck manufacturer for example Tata, Ashok Leyland, Eicher, Mahindra etc.Compactl size enables it to work in narrow, low passage areas. It is designed for collecting and transporting solid municipal waste and all sorts of separated waste.The hydraulic tank and pump are included with the compactor. The machine has a simple, reliable and robust design.

Note:- All dimensions are variable within ± 1.5%. VERT reserves the right to change specifications without prior notice.

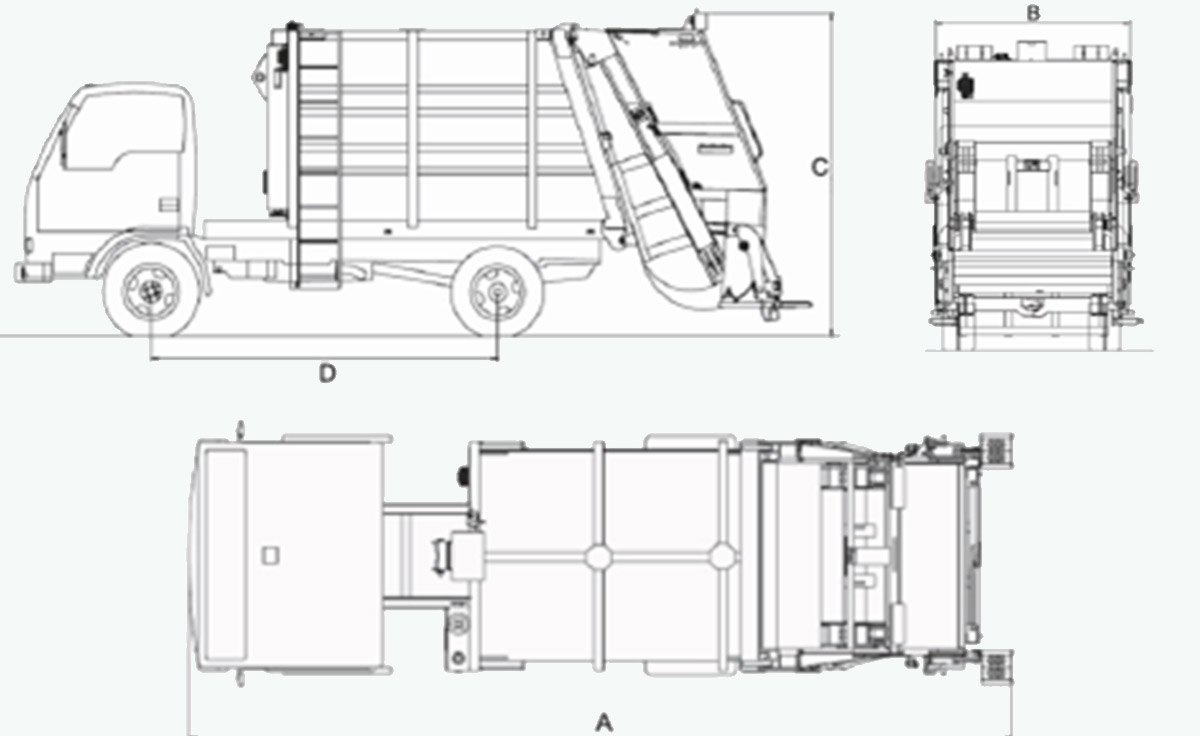

	Dimensions	7m3	8m3	14m3	15m3
A	Length (mm)	7400	7400	7400	7400
B	Width (mm)	2200	2200	2200	2200
C	Height (mm)	3020	3020	3020	3020
D	Wheel Base	3600	3600	3600	3600

Features

Ribbed Container
Carrier with packer
Pushout plate
Hydraulic circuit driven by PTO from gearbox

Push out plate
Push out plate is guided in longitudinal U-shaped tracks located on the sides of the container. The maintenance free Metalon pads are wear-resistant and easily replaceable and will ensure smooth movement of pushout plate, which is moved by multi-stage hydraulic cylinder.

Carrier with packer
The Carrier and Packer is integrated in rear tail gate and moved by two pairs of double acting hydraulic cylinders. The Carrier and Packer press waste towards Pushout plate.

Tail gate
The Tail gate is operated by two double acting hydraulic cylinders with safety feature against gate falling down during hydraulic failure.

Optional accessories

Rear working lights for work in night
Beacon lights at front and rear
Buzzer in drivers cabin operated from rear to give signal to driver
Safety switch to stop PTO in case of accident
Waste water collection tank (70 to 100 liters)
Rear camera to provide view to driver at rear working area
Airconditioned drivers cabin

Specification
Colour of the container	As per customer request
Hooper Capacity	1.2 m³
Sewage Tank Capacity	100 L
Compression Ratio	0.2
Discharge Model	Horizontal
Control	Manual, Semi & Fully Automatic
PTO Operation (rpm)	1500
Universal Bin Lifting System	Available
Emergency Burtton Switch	Available on LHS & RHS
Alarm (Buzzer) in Driver Cab	Available
Filters	On suction & Return Line

Performance
Description	Parameter
Tail gate lift time (s)	10
Work cycle time (s)	40
Discharging time (s)	20
Bin lifter capacity (kg)	240:600:1100
Maximum compression force (T)	340
